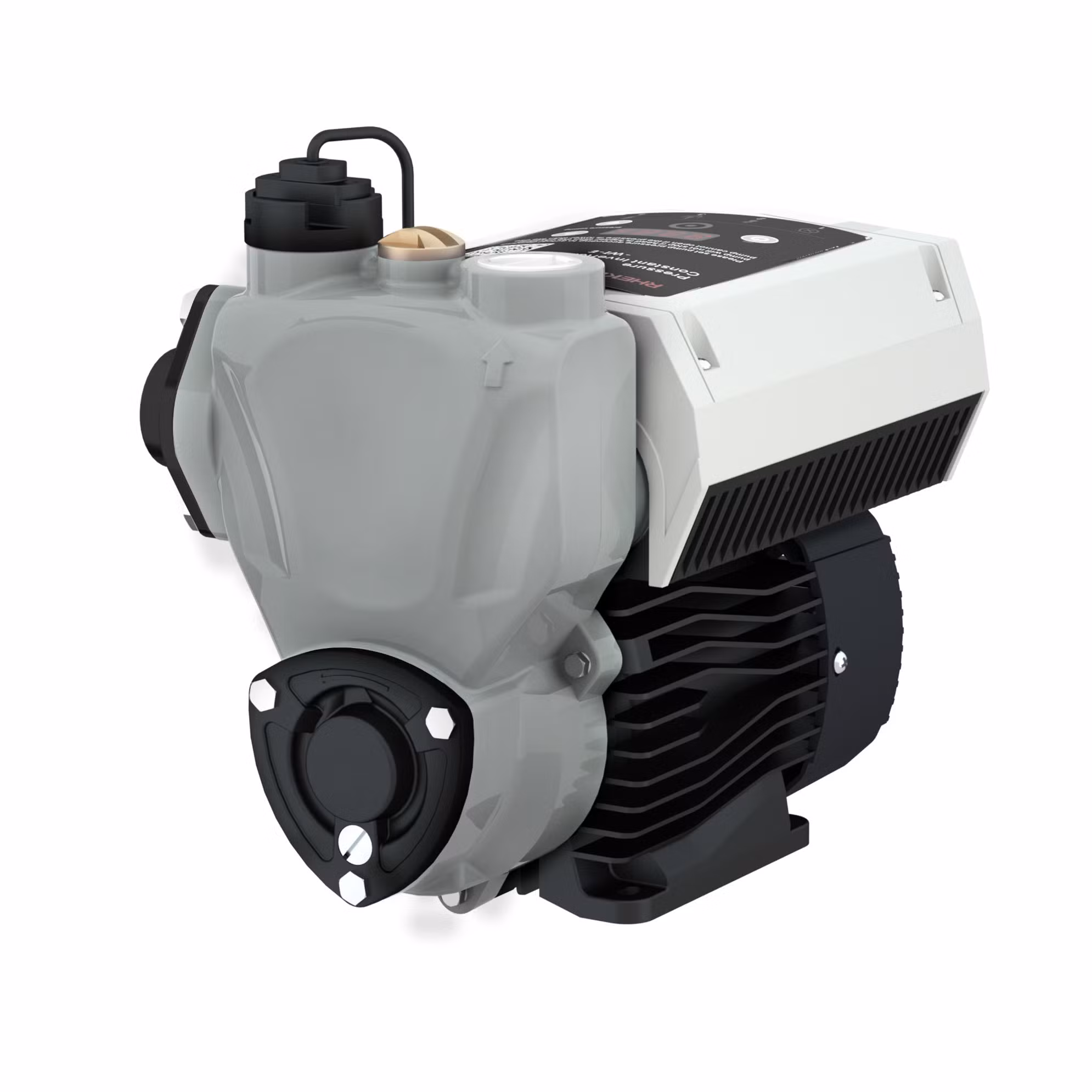

Water is essential for life and subject to the highest quality requirements. This also applies to the technology that controls and safeguards the domestic hot water supply. Water supply and circulate from RHEKEN are the solution for all who have the most exacting demands on materials, operation and convenience.
CONSTANT PRESSURE
COMPACT INTERGRATED DESIGN
DELAY START
WATER STOP , PUMP STOP
FLOW CONTROL
MECHINE LOCK PROTECTION
OVERLOAD PROTECTION
Model | Voltage | Power | Max Head (M) | Max Flow | Suction (M) | Pipe Size (mm) | Height of Stator (mm) |
(W) | (L/min) | ||||||
1WZB35-400I | 220V/50/60HZ | 400 | 35 | 38 | 9 | 25 | 65 |
1WZB40-600I | 220V/50/60HZ | 600 | 40 | 53 | 9 | 25 | 65 |
1WZB45-800I | 220V/50/60HZ | 800 | 45 | 58 | 9 | 25 | 80 |
| 1WZB60-1500I | 220V/50/60HZ | 1500 | 60 | 100 | 9 | 40 | 115 |
NEEDING PRICE LIST AND OEM SERVICE , PLEASE ALSO CONTACT MR LUSON.
| BRASS IMPELLER | FLOW SENSOR | RATOR |
FOR PER ORDER , WE SUPPORT YOU 2% SPARE PART , INCLUDE IMPELLER, FLOW SENSOR AND FOOT VALVE;
SEPARATELY REPAIR KIT FOR PUMP , ALSO BE SUPPORTED.
REPAIR KIT WILL BE SEND TO YOUR HAND WITHIN SEVEN WORKING DAYS.
REPAIR KIT WILL BE SEND TO YOUR HAND WITHIN SEVEN WORKING DAYS.
| WATER SUPPLY FOR VILLA | HOT WATER BOOSTING OR CIRCULATING |
