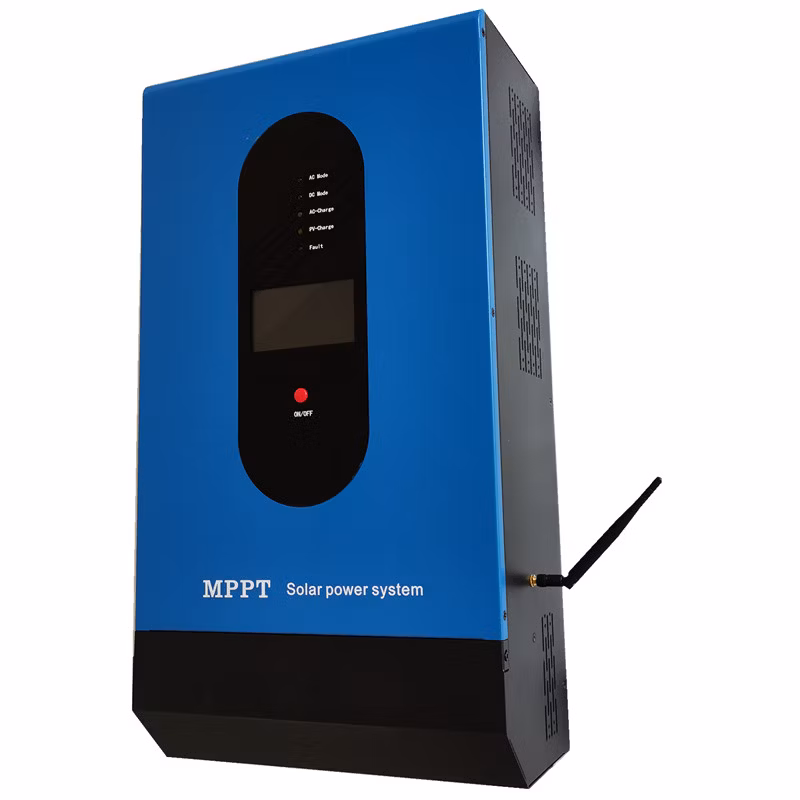

5KW Off Grid Hybrid Solar Inverter Upgrade!
Factory direct price
Running directly, working without battery
Smart WIFI and GPRS system allows to monitor PV system
Maximum capacity up to 5500W
Maximum PV power up to 6000W
Maximum MPPT charging current up to 100A
Maximum MPPT range operating voltage up to 500VDC
The perfect go-to solution for off-grid, for project,home,and office.
Touch screen intelligent hybrid inverter with built-in 60A/48V MPPT solar charge controller,suitable for both lead-acid battery and lithium battery,all adjustment can be done on the screen by customer,easy operation and stable performance!
Model | MIC1.5KW | MIC2KW | MIC3KW | MIC4KW | MIC5KW | ||||
Rate power | 1500w | 2000w | 3000w | 4000w | 5000w | ||||
Battery | Rated voltage | 24V | 48V | ||||||
Inverter | Output power wave | Pure sine wave | |||||||
Input Frequency | 45-65Hz | ||||||||
AC input voltage range | 170-275VAC(220V) 85-138VAC(110V) | ||||||||
Battery voltage range | 10.5-15VDC( single battery voltage) | ||||||||
Output voltage range | Inverter mode 110v/220v/230v/240v± 2% | ||||||||
Utility output voltage range | Constant voltage output 220V±10%, 110VAC±10% | ||||||||
Output frequency | 50/60HZ± 1% | ||||||||
Utility output frequency range | 50HZ 60HZ automatic tracking | ||||||||
Efficiency | 85% | ||||||||
Charging type | U0-U7 | ||||||||
Charging current | C0=0A,C1=5A, C2=10A, C3=15A, C4=20A,C5=25A, C6=30A | ||||||||
Battery lack voltage alarm/protect | 24V( 21V/20V) | 48V(42V/40V) | |||||||
Battery over voltage alarm/protect | 24V(30V/33.4V) | 48V(60V/66.8V) | |||||||
Overload protection | Rated power ≥110%, 60S power off; ≥130%, 10S power off; ≥150%, 0.6S power off | ||||||||
Protection function | Battery over voltage and low voltage protection, overload protection, short circuit protection, over temperature protection, etc. | ||||||||
MPPT Solar controller | Solar rated voltage | 36V | 72V | ||||||
Maximum PV open circuit voltage | 190V | ||||||||
Maximum input voltage | 105V | 160V | |||||||
Maximum efficiency | ≥98.1% | ||||||||
Rated charging voltage | 28.6V | 57.2V | |||||||
Charging current | 40A/50A/60A | ||||||||
Over charging protect voltage | 30V | 60V | |||||||
Over discharge | 20V | 40V | |||||||
Operating ambient temperature | 0-40ºC | ||||||||
Display | LCD (inverter output voltage, input AC voltage, battery capacity percentage, load capacity percentage, solar input voltage, generating capacity, solar charge current, etc..) | ||||||||
Cooling method | Auto detective cooling fan, ≤42 Fan slow turning heat dissipation, ≥45ºC Fan high turning heat dissipation | ||||||||
Storage ambient temperature | -15 - +50 ºC | ||||||||
Operation / storage environment | 0-90% No condensation | ||||||||
Product size: length * width * height | 440*310*132mm | 485*350*182mm | |||||||
Package size: length * width * height | 495*360*190mm | 540*400*240mm | |||||||
Net weight | 16kg | 16kg | 21kg | 23kg | 29kg |
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/4c50a1a549f7c48469e09a35c24ca238.webp)
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/7fc8fb78d8c1df2a1aff684e21d0418b.webp)
Production Lines:
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/b62f90845aa4d7faac11763f8d45ced3.webp)
Products Packages:
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/bdce450a678df353af55130bc4eab506.webp)
Successful Installation Cases :
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/3ec0cbd299ed4b96c934c63e9e02c18c.webp)
our Company name :
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/f58b25e1ea54bb860621c1ee61b45edf.webp)
Products Certificates:
![Solar Hybrid Inverter 3kw, 5kw with MPPT Solar Charge Controller Built-in, Hybrid Inverter for Solar](https://img3.grofrom.com/soloryfsgroup/588b94013b54560ce42cab845cd0eece.webp)
FAQ:
Q1: MOQ
A: MOQ from our company is required 1 unit
Q2: Are you manufacturer or trading company?
A: We are professional manufacturer of UPS since 1998 and manufacturer of solar inverter, solar charge controller and AC&DC solar power system since 2004; we are also trading company of solar panel and battery for solar power system.
Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.
Q4: How long is your delivery time
A: Within 15 days
Q5:How about your after-sales service?
A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.
Q6: Why choose us?
A1)Prompt delivery and good after-sale services.
A2)We have our own factory,the selling prices is competitive.
A3)All of our products are certified with CE, RoHS, ISO9001:2008.
A4)100% new materials for production and superior quality.
A5)Professional R&D technology team average 10 years experience.
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
